Anti‑Drone Net‑Galvanized Wire Rope Net

Product Introduction

Anti‑drone net‑galvanized wire rope net is a physical interception protective product built for low‑altitude security. It is assembled with high‑strength hot‑dip galvanized steel wire rope and clip connection technology. The flexible mesh can entangle and intercept unauthorized illegal‑flight drones, preventing UAV surveillance, object‑dropping and impact against critical infrastructure. Hot‑dip galvanizing delivers outstanding rust and corrosion resistance, performing better than ordinary nets for long‑term outdoor, rainy and humid environments. Thickened wire rope options: 4mm,5mm,6mm. Mesh aperture, rope diameter and single panel size are fully customizable with reinforced edge binding. The clip‑type structure enables easy assembly and disassembly for fast on‑site splicing. Widely applied in substations, chemical plants, airports, industrial parks and large‑event venues for restricted low‑altitude zones. Capable of fast deployment of large‑size low‑altitude security barriers.

Key Features

1. Hot‑dip galvanized anti‑corrosion: full hot‑dip galvanizing for steel wire rope, resisting rain and humid atmospheric corrosion, long outdoor service life, cost‑effective alternative to stainless steel.
2. Thickened high impact‑resistance: optional 4/5/6mm galvanized steel wire rope, greatly improved tensile strength. Capable to withstand impact and entanglement from heavy‑duty drones, anti‑tear with higher protection level.

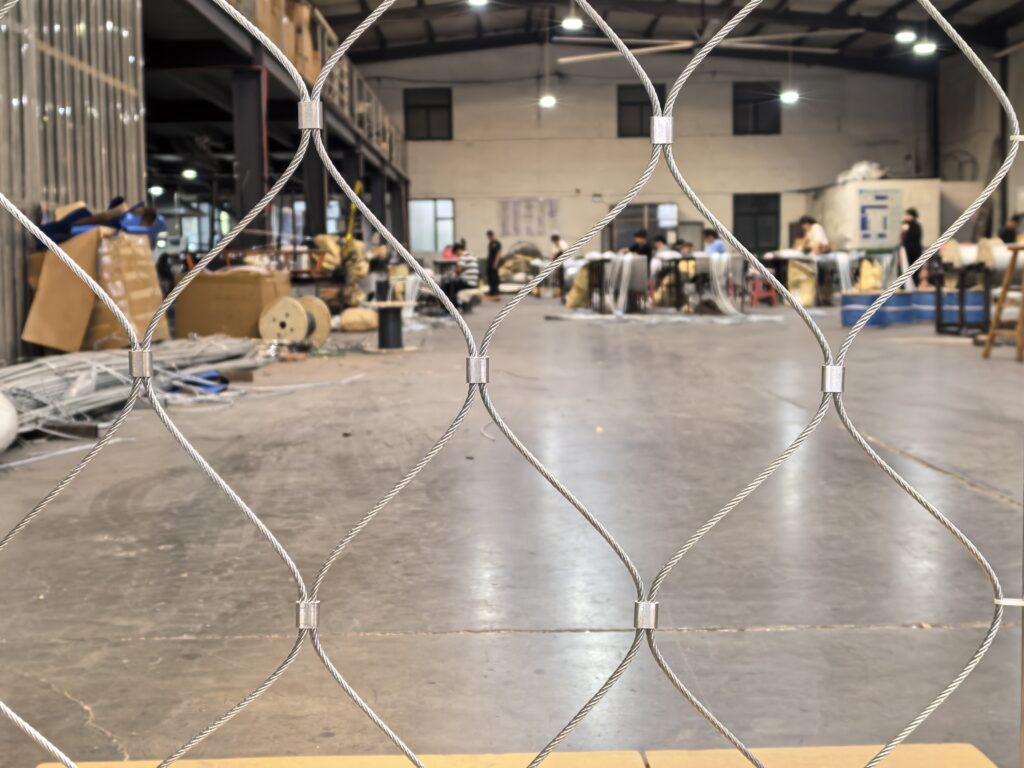

3. Clip connection structure: Special metal clips are used to fix rope joints. Compared with knotless weaving, mesh panels can be separated and spliced on site. Damaged sections can be replaced individually without removing the whole net.
4. Visual permeability: rope structure without fully blocking site sight, no interference for on‑site operation observation.
5. Flexible customization: optional rope diameter (4/5/6mm), mesh opening, length & width tailor‑made; metal hanging loops can be fitted for frame‑hanging and overhead‑covering installation. Single panel size fully custom, produced according to your required dimensions.

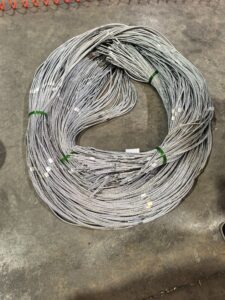

6. Convenient transport & on‑site assembly: moderate weight, supplied in rolls. Clip design supports fast on‑site splicing and mesh adjustment.

Technical Specifications

Application Scenarios

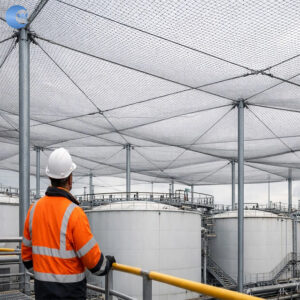

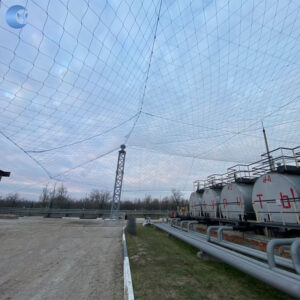

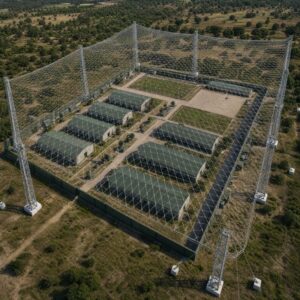

English ‑ Industrial critical infrastructure: low‑altitude protection for substations, energy‑storage stations, chemical plants and refineries, intercept unauthorized UAV photography and object‑dropping. ‑ Airport geofence security: overhead low‑altitude barrier above airport perimeter fence against illegal‑flight drones disturbing flights. ‑ Large‑scale public events: temporary low‑altitude security for stadiums, exhibitions and concerts. Clip structure enables quick setup and dismantling. ‑ Industrial & confidential campus: factories and research institutes block external UAV surveillance. ‑ UAV test zone: heavy‑duty drone test‑cage enclosure to confine flying range of large payload test drones. Damaged segments can be replaced separately.

Packing & Delivery

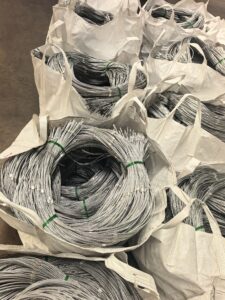

English Nets are bundled, Ton bag (woven bag) to avoid scratch damage during transit. Packing list and material test report are available. Production lead‑time: 7‑15 working days for regular orders（Daily output of 10,000 square meters）; complex custom specs subject to PI confirmation. FOB, CIF, DAP and other trade terms supported; sea freight & air freight acceptable.

Get Quotation

English For quotation, please inform us: wire‑rope diameter (4/5/6mm), mesh aperture, single panel dimension, total square meters, Drawing‑based OEM custom available. Send dimension drawings for complete technical proposal and price.
